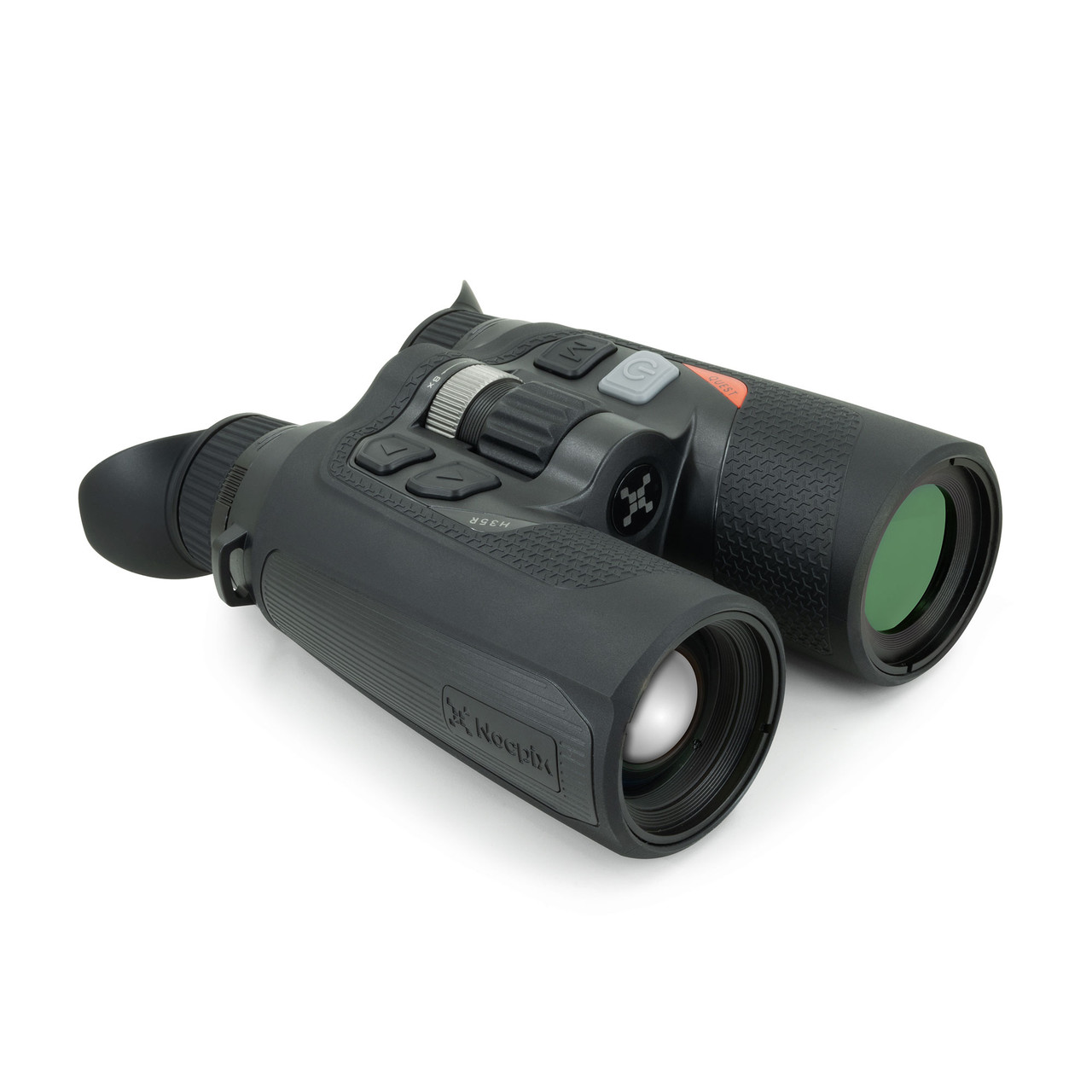

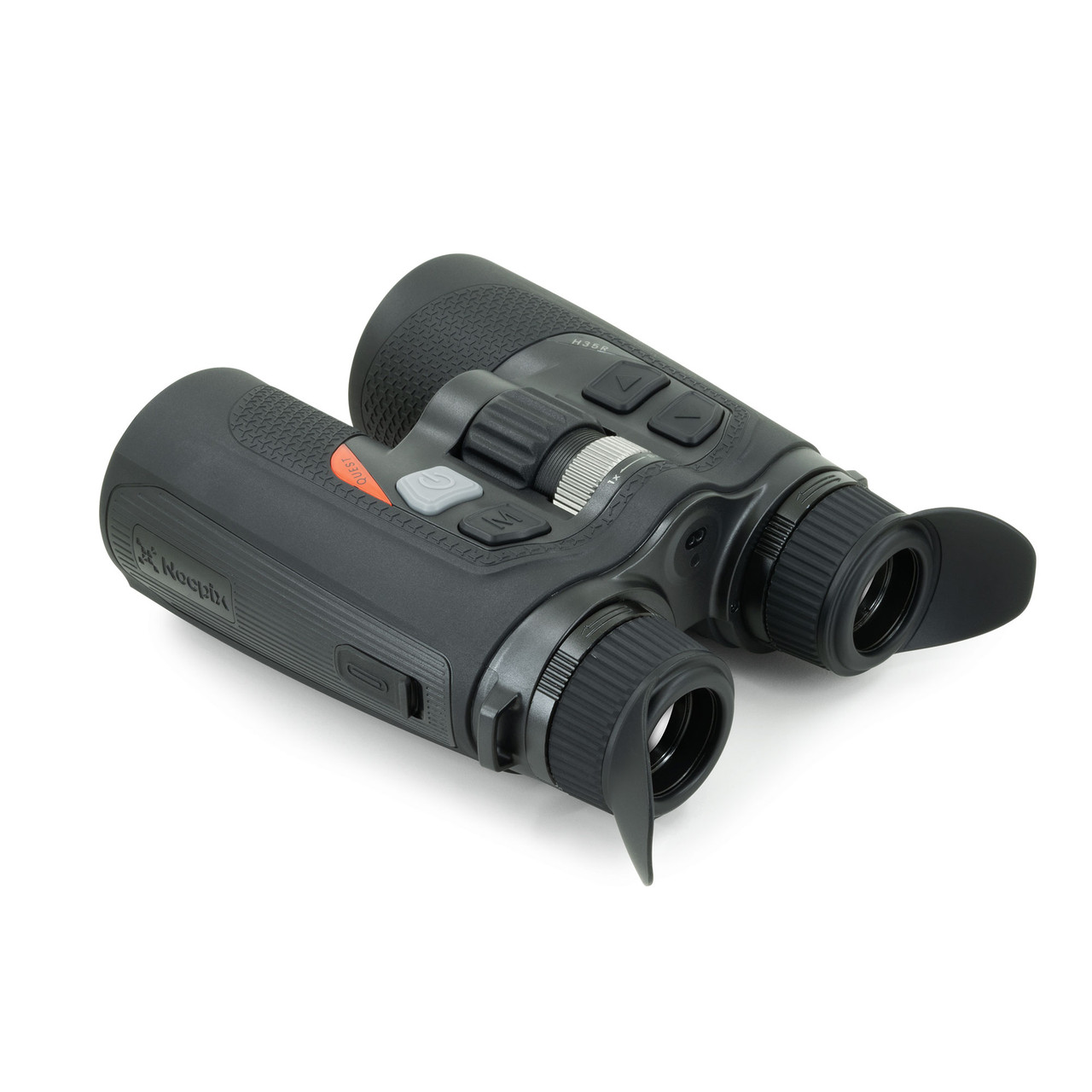

InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm

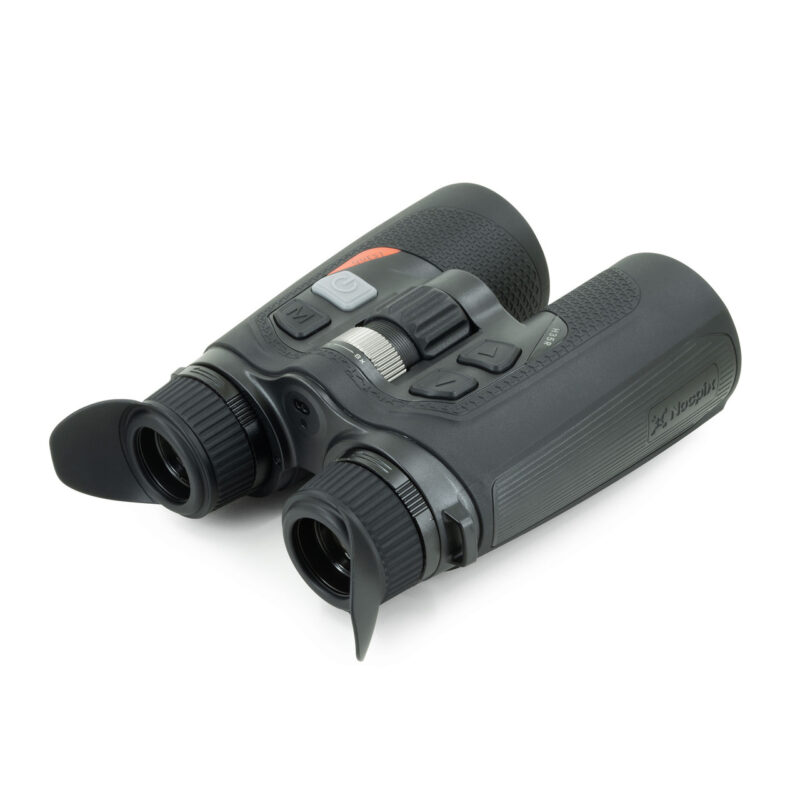

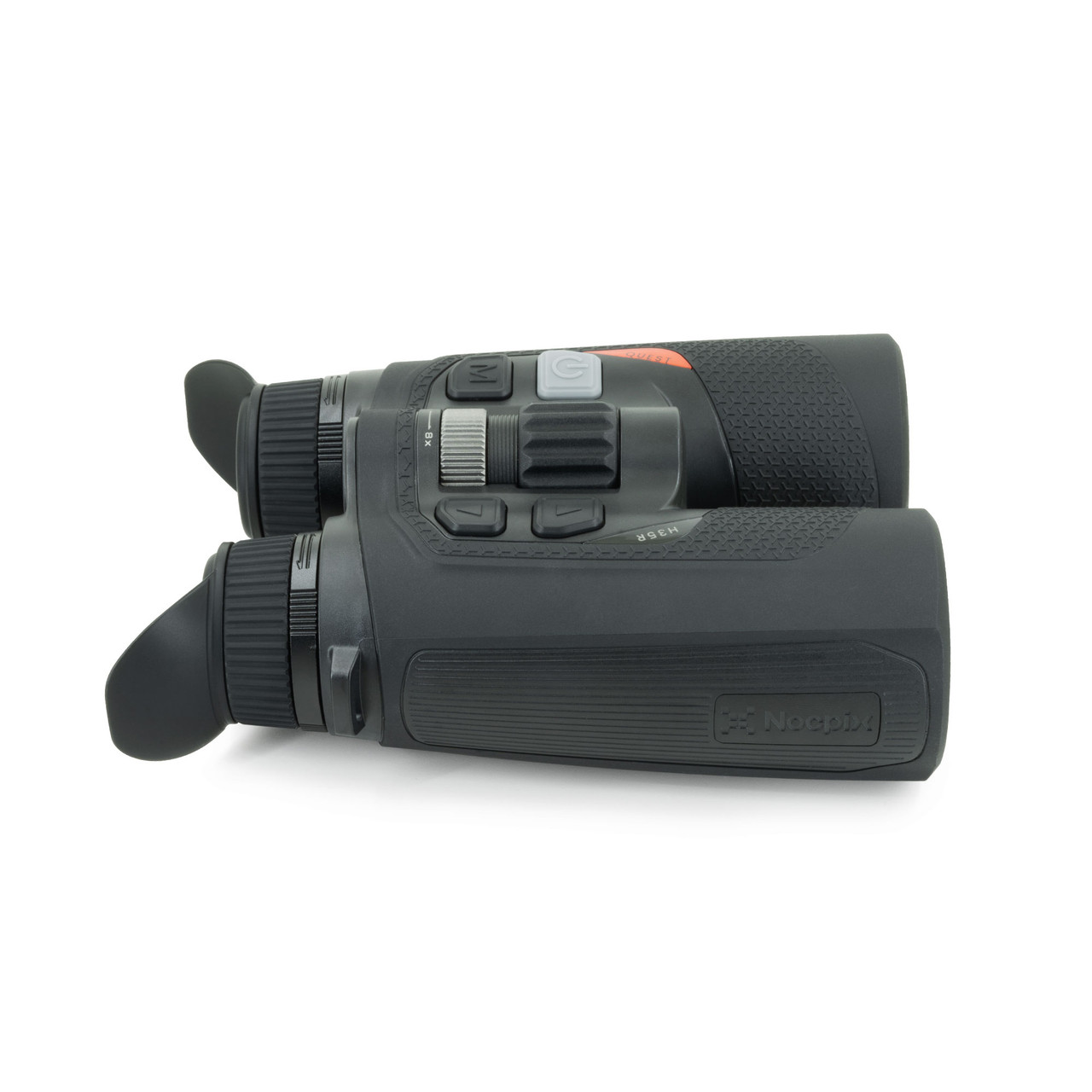

InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm - Image 2

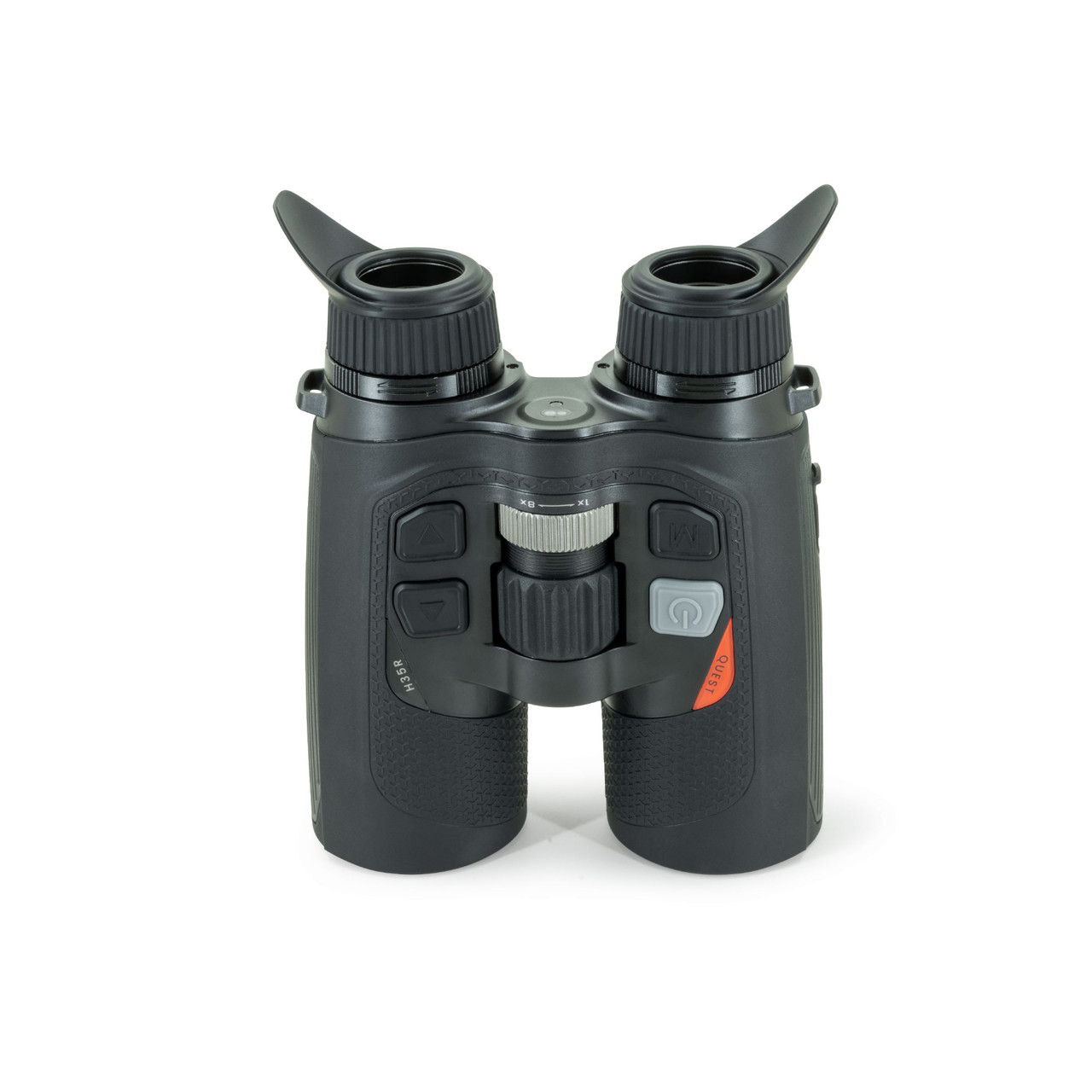

InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm - Image 3

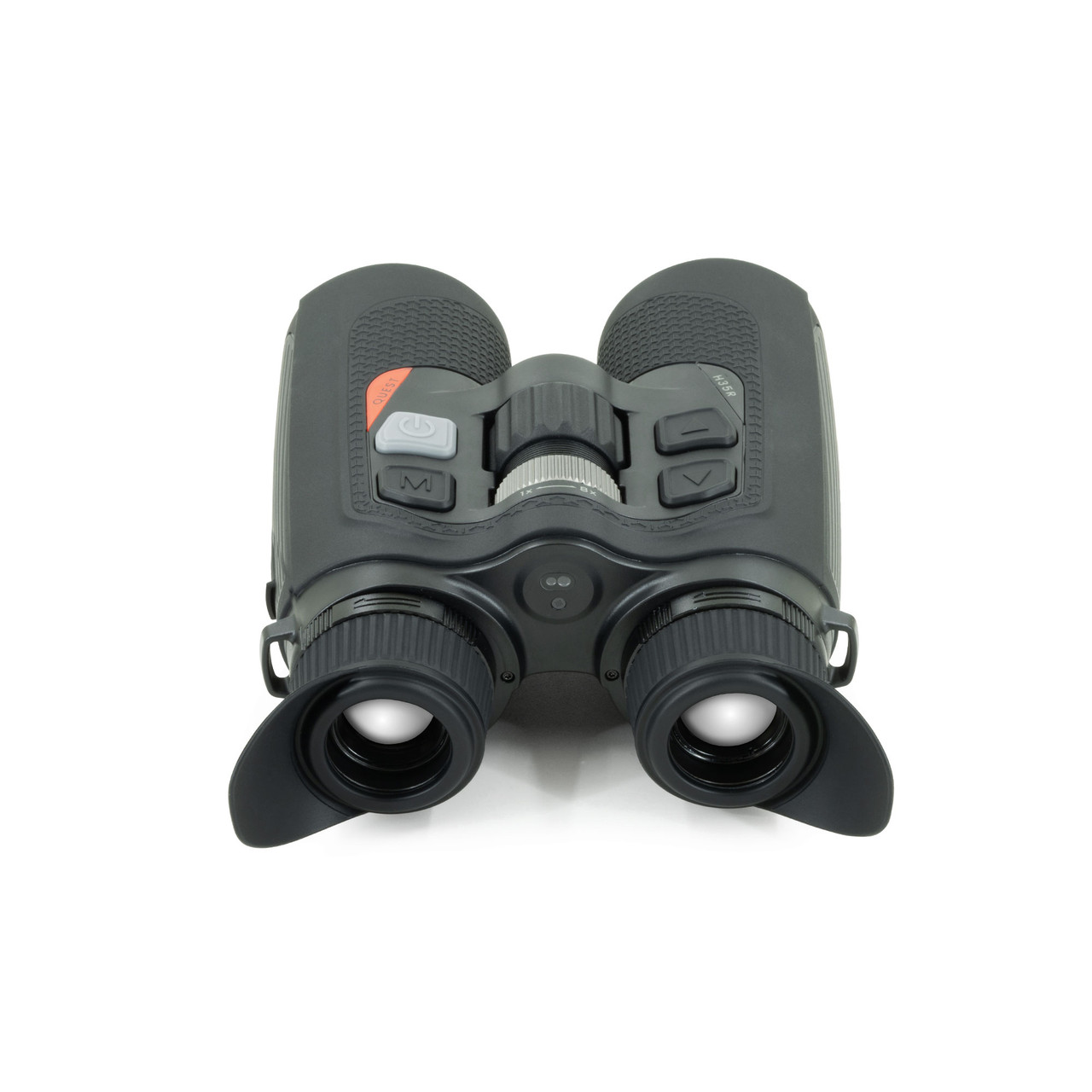

InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm - Image 4

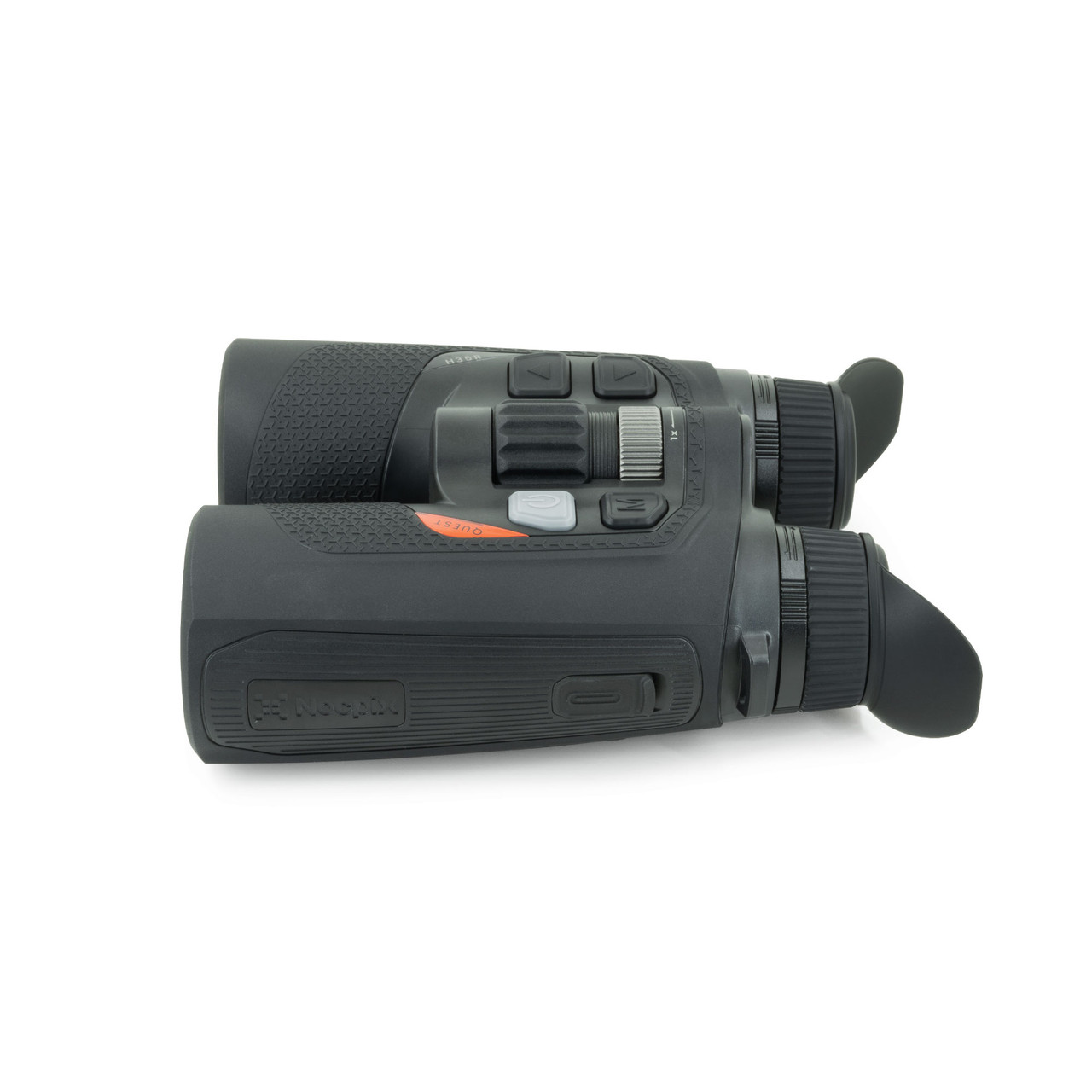

InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm - Image 5

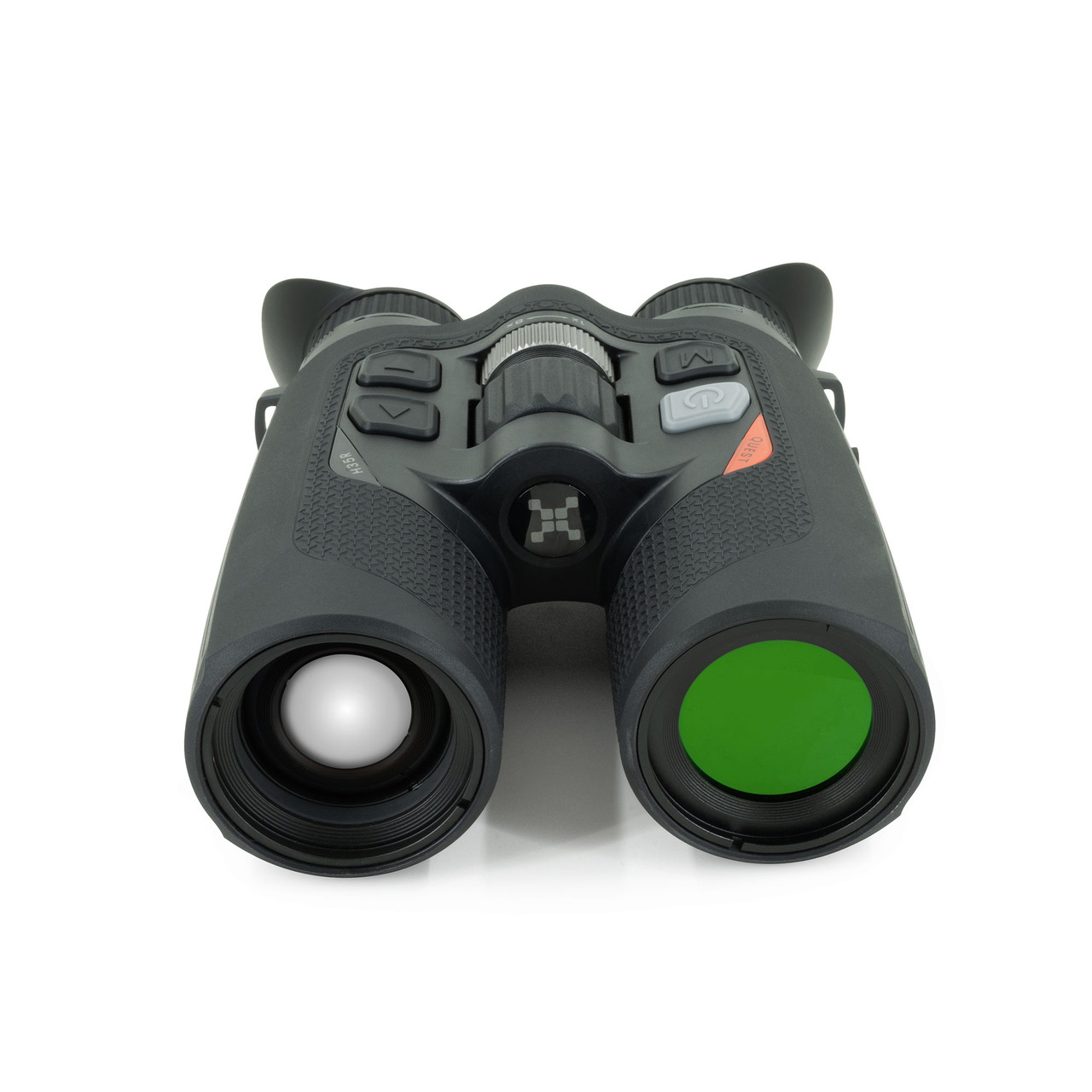

InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm - Image 6

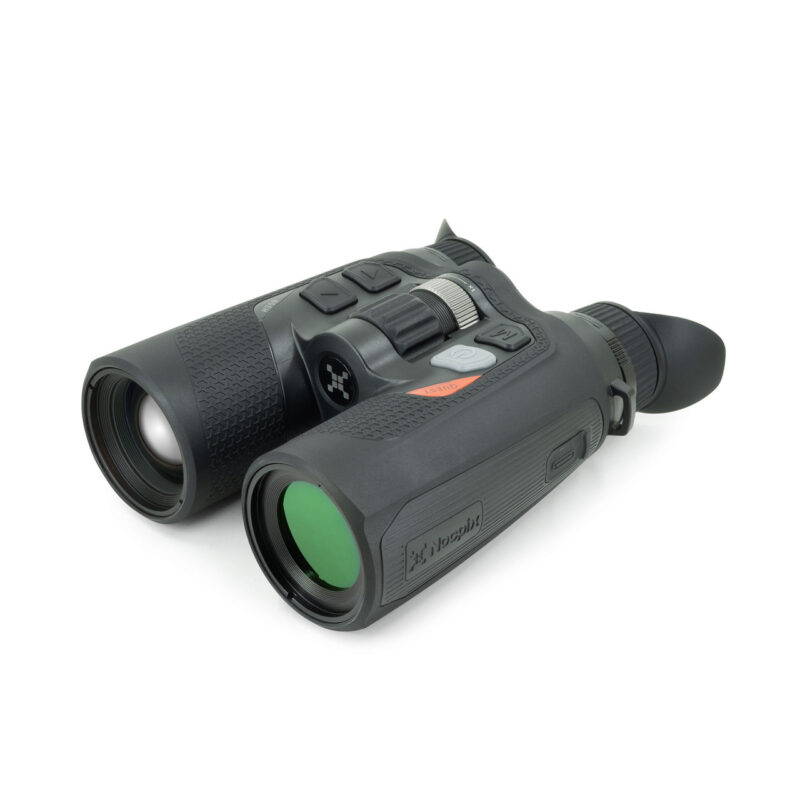

InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm - Image 7

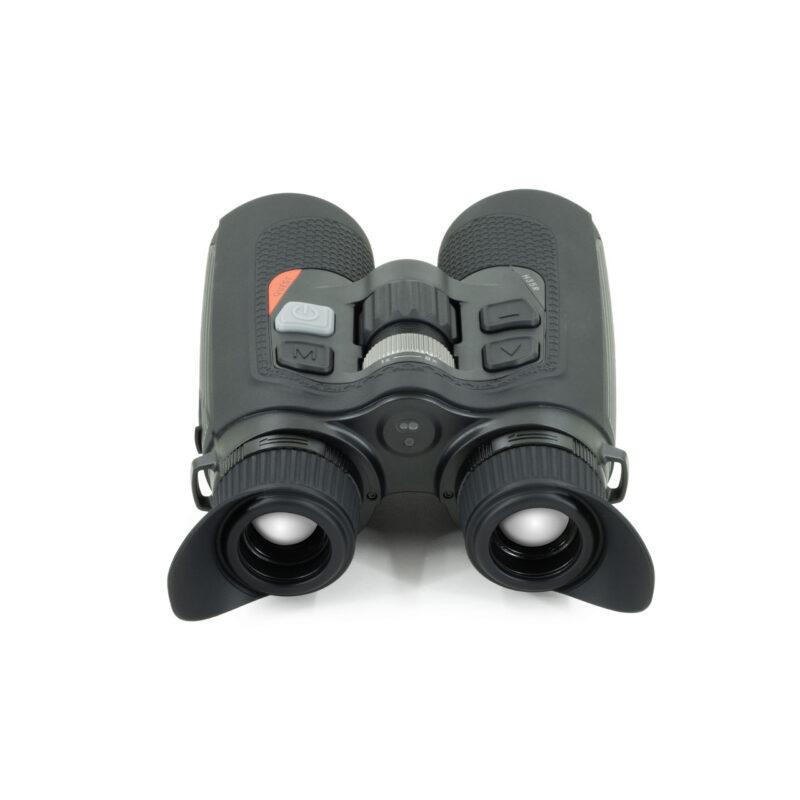

InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm - Image 8
InfiRay QUEST H35R Rangefinding Thermal Binocular 640x512 35 mm - Image 9

InfiRay QUEST H35R Rangefinding Thermal Binocular 640×512 35 mm

Original price was: $3,650.00.Current price is: $3,299.00.

InfiRay QUEST H35R Rangefinding Thermal Binocular 640×512 35 mm

Out of stock



All new for 2025, QUEST binoculars deliver a comfortable and intuitive viewing experience. Unlike thermal monoculars, the QUEST binoculars allow users to use both hands and both eyes while scanning – providing a smooth and comfortable feel, just like traditional daylight binoculars. A 12 μm ≤15mK 640×512 thermal sensor captures every detail, while the Reality+ image processing algorithm delivers a vivid picture to the 1920×1200 displays (full resolution per each eyepiece). Each display has a dedicated diopter and position adjustment.



QUEST binoculars also include an easy-to-use 1,000 yard laser rangefinder that can run in either single-firing or continuous modes to show target distance on the display. The combination of an internal USB-C rechargeable battery and an auxiliary IRB-2 (18650 style) rechargeable battery allows users to hot-swap the power source and keep running all night long. The QUEST is available with a 50 mm objective lens (model H50R) or a 35 mm germanium objective lens (H35R). Each comes with everything you would expect from high-end binoculars, including a comfortable and fully adjustable binocular harness.







  • Optics

    Objective Focal Length: 35mm
    Detection Range: 970 Yards
    Digital Magnification: 8X
    Vertical Angular Field of View: 10°
    Horizontal Angular Field of View: 12.5°
    Objective Lens Material: Germanium
    Optical Magnification: 3X
    Objective F#: 0.9
    Objective Diameter: 35mm
    Display Type: AMOLED
    Eye Relief: 25mm
    Diopter Range: -5 to +5
    Focusing Mechanism: Manual Focus
    Display Resolution: 1920×1200

  • Features & Performance

    Warranty: 5 Years
    Startup Time: <10 Seconds, Instant from Standby
    Rangefinder: Integrated 1000 yd LRF
    Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
    Picture-in-Picture: Yes
    Storage Capacity: 64GB
    Connector Output: Power/Data
    User-Updatable Firmware: Yes
    Mobile App: Yes
    Run Time: 5+
    Power Source: USB-C External, 18650 Battery, Built-In Battery Pack
    Stand-by Mode: Yes
    Connector Type: USB-C
    External Power Source: USB-C
    Country of Manufacture: China
    Wifi: Yes
    Onboard Recording: Yes
    Image Capture: Yes
    Video Output: Yes

  • Environmental Specifications

    Operating Temperature Range: -4°F~122°F
    Ingress Protection: IP67

  • Physical

    Housing Material: Polymer
    Weight: 24.69
    Height: 2.60
    Width: 5.43
    Length: 6.91

  • Sensor Specifications

    Sensor Type: Nocpix 640
    Device Technology: Thermal Imaging
    Sensor Resolution: 640×512
    Sensor Pixel Size: 12μm
    Thermal Sensitivity: <15mk
    Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic
    Sensor Frame Rate: 60hz
