BOLT TH50C V2 Thermal Weapon Sight 640×512 50mm

Great for people looking for a “normal hunting looking” scope that has thermal capabilities.

The InfiRay Outdoor BOLT TH50C V2 expands on the success of the TH50C with the addition of improved audio recording and an optional Bluetooth laser rangefinder module. InfiRay’s industry-leading 12 μm 640×512 Micro II sensor, 1.03-inch large-format 2560×2560 resolution display, and Shutterless Calibration feature are now more powerful than ever, while still maintaining the proven combination of a manual focus lens, dual battery design, and tactile control turret. The BOLT TH50C V2’s traditional look and flexibility of a 30 mm ring mounting interface also guarantee the perfect fit on your favorite hunting rifle.

The BOLT TH50-C V2 features a one-of-a-kind circular 2560×2560 AMOLED display for a more traditional rifle scope look and feel. Inside of a TH50-C V2, the image from an InfiRay 50Hz 12 micron Micro II core is displayed on a crystal clear 2560×2560 ULTRA HD 1.03in display. These components and InfiRay’s proprietary MATRIX III algorithm create an image technically and visually superior to optics with similar specifications. Dual internal 18650 batteries and an optional auxiliary battery provide 10+ hours of run time. The TH50-C V2 also comes standard with 16 Gb of internal memory for hours of video capture

The BOLT-C Series was designed from the ground up for optimal use on bolt action rifles and other platforms that demand flexible mounting options with increased eye relief. The traditional style of a BOLT housing allows for mounting with standard 30mm rings like a typical day scope.

OLD MEETS NEW

The BOLT features InfiRay Outdoor’s innovative new way to control a thermal optic. Unlike other thermal optics with a turret style controller on one side, the BOLT has a large and easy to find metal turret controller on top. This makes operation easier in the dark and completely ambidextrous. The turret controller also has positive and tactile clicks when twisting, and a positive click when pressing in unlike any other thermal scope on the market. Both the aesthetics and the function of the BOLT demonstrate InfiRay Outdoor’s mission to combined the traditional style and feel of a day optic and the advanced technology of thermal imaging.

HIGH PERFORMANCE

The TH50C V2 features the industry leading InfiRay 12 micron Micro II core with proprietary MATRIX III image processing, but that is just where the high performance begins. Along with the best sensor and software the TH50C V2 uses a set of optics specifically designed for a 12 micron sensor and a large-format 2560×2560 AMOLED HD display. Dual internal batteries power the BOLT for an incredible 10+ hours, and if you need more runtime the BOLT has an additional battery well for an off-the-shelf 18500 or 18650 battery. The BOLT also supports charging the internal batteries through a USB-C connector while in operation so you are never stuck with a dead battery.

ADVANCED TECHNOLOGY

The BOLT-C comes with 16gb of memory for storing 20,000 images or 24 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app. The WiFi mode also allows for up to 4 connections to the BOLT-C simultaneously allowing multiple viewers to see the BOLT-C’s thermal image in real time. Audio can also be recorded in the app via your smartphone microphone while connected to the app.

• Optics

  Objective Focal Length: 50mm

  Detection Range: 2400 Yards

  Display Type: AMOLED

  Eye Relief: 50mm

  Digital Magnification: 4X, stepped

  Diopter Range: -5 – +3.5

  Display Resolution: 2560×2560

  Optical Magnification: 3.5X

  Vertical Angular Field of View: 7°

  Horizontal Angular Field of View: 8.8°

  Focusing Mechanism: Manual Focus

  Objective F#: 1.1

  Objective Diameter: 50mm

  Objective Lens Material: Germanium

  • Features & Performance

    Onboard Recording: Yes

    Warranty: 5 Years

    Rangefinder: Bluetooth ILR-1200-1 LRF (Optional)

    Picture-in-Picture: Yes

    Reticle: 7 (2 Dynamic, 5 Static)

    Startup Time: Under 10 Seconds

    Color Palettes: White Hot, Black Hot, Red Hot, Color, Highlight

    Storage Capacity: 32GB

    Connector Output: Power/Data

    User-Updatable Firmware: Yes

    Mobile App: Yes

    Run Time: 8+

    Power Source: Dual Power Supply (8+ Hours), 18500 Battery (2+ Hours), 18650 Battery (3.5+ Hours)

    One-Shot Zero: Yes

    Stand-by Mode: Yes

    Connector Type: USB-C

    External Power Source: USB-C or 18500/18650

    Country of Manufacture: China

    Wifi: Yes

    Image Capture: Yes

    Video Output: Analog RS-170/NTSC

    • Environmental Specifications

      Recoil Rating: 1000 g/s² (300 Win./7mm Mag)

      Ingress Protection: IP67

      Operating Temperature Range: -4°F~122°F

      • Physical

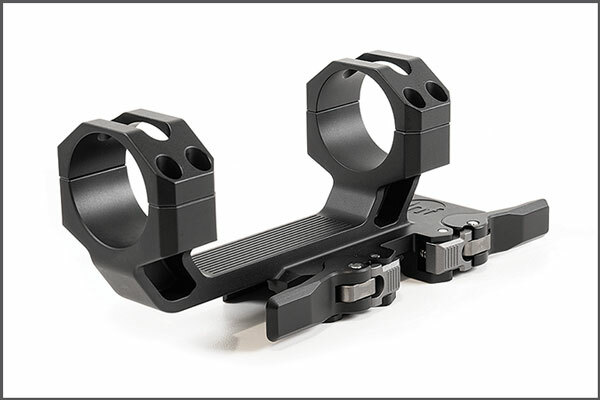

        Mounting Interface: 30MM Rings (included)

        Housing Material: T-6061 Aluminum

        Weight: 33.15

        Height: 2.95

        Width: 3.34

        Length: 14.5

        • Sensor Specifications

          Sensor Resolution: 640×512

          Sensor Type: InfiRay MICRO II

          Sensor Pixel Size: 12μm

          Thermal Sensitivity: <25mk

          Non-Uniformity Correction (NUC): Manual, Automatic, Semi-Automatic

          Spectral Response: 8-12 Microns

          Sensor Frame Rate: 50hz

          Device Technology: Thermal Imaging
