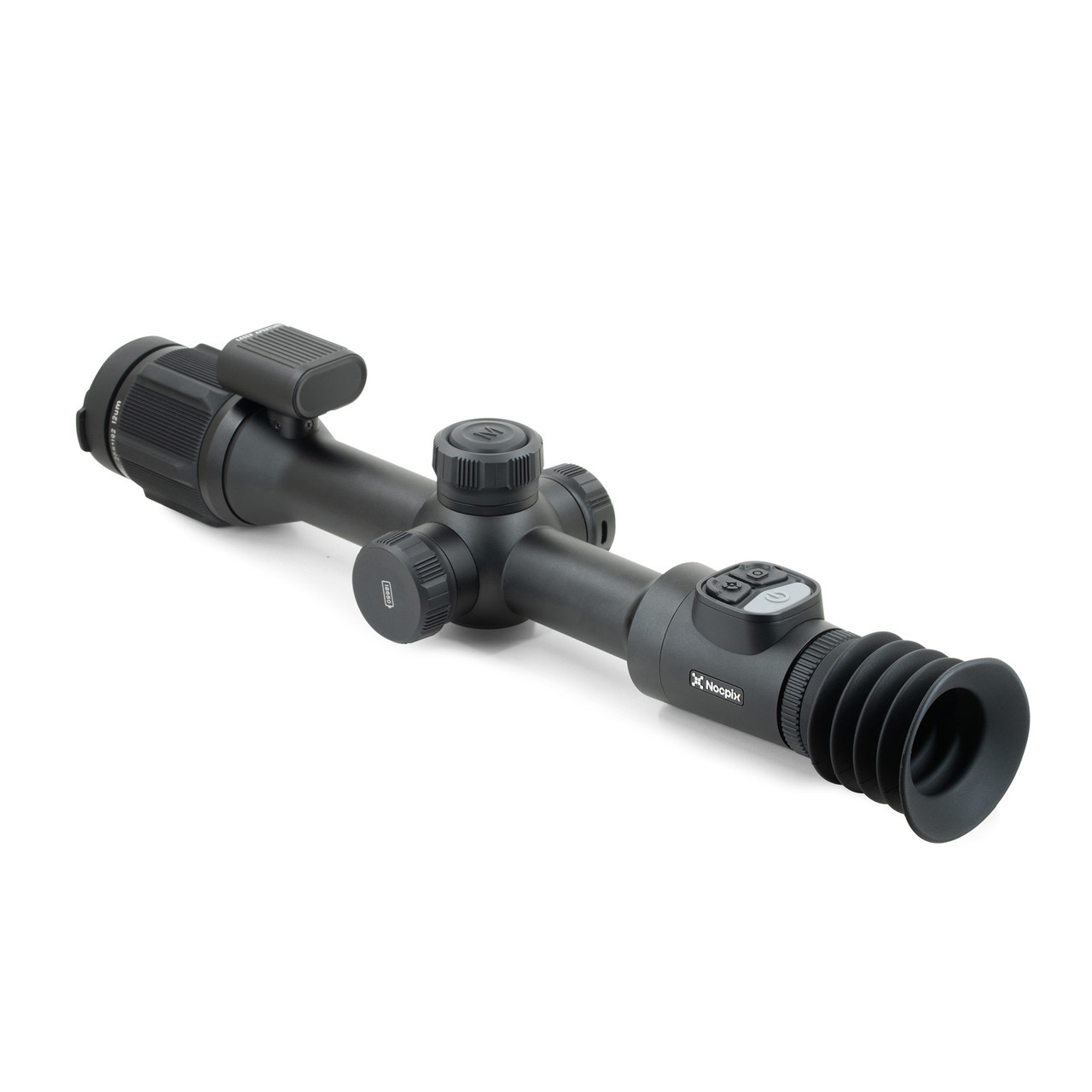

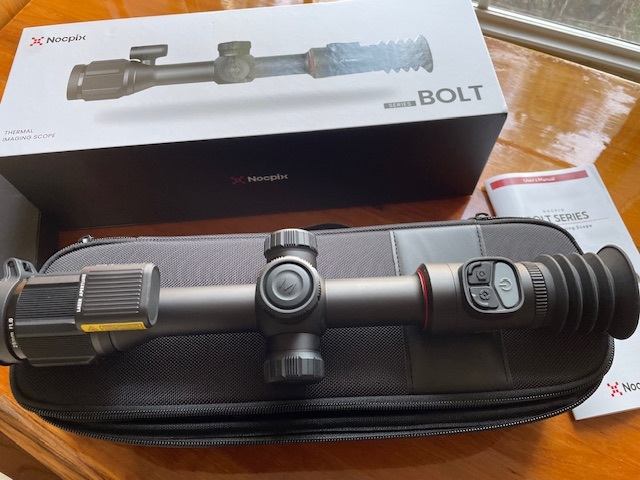

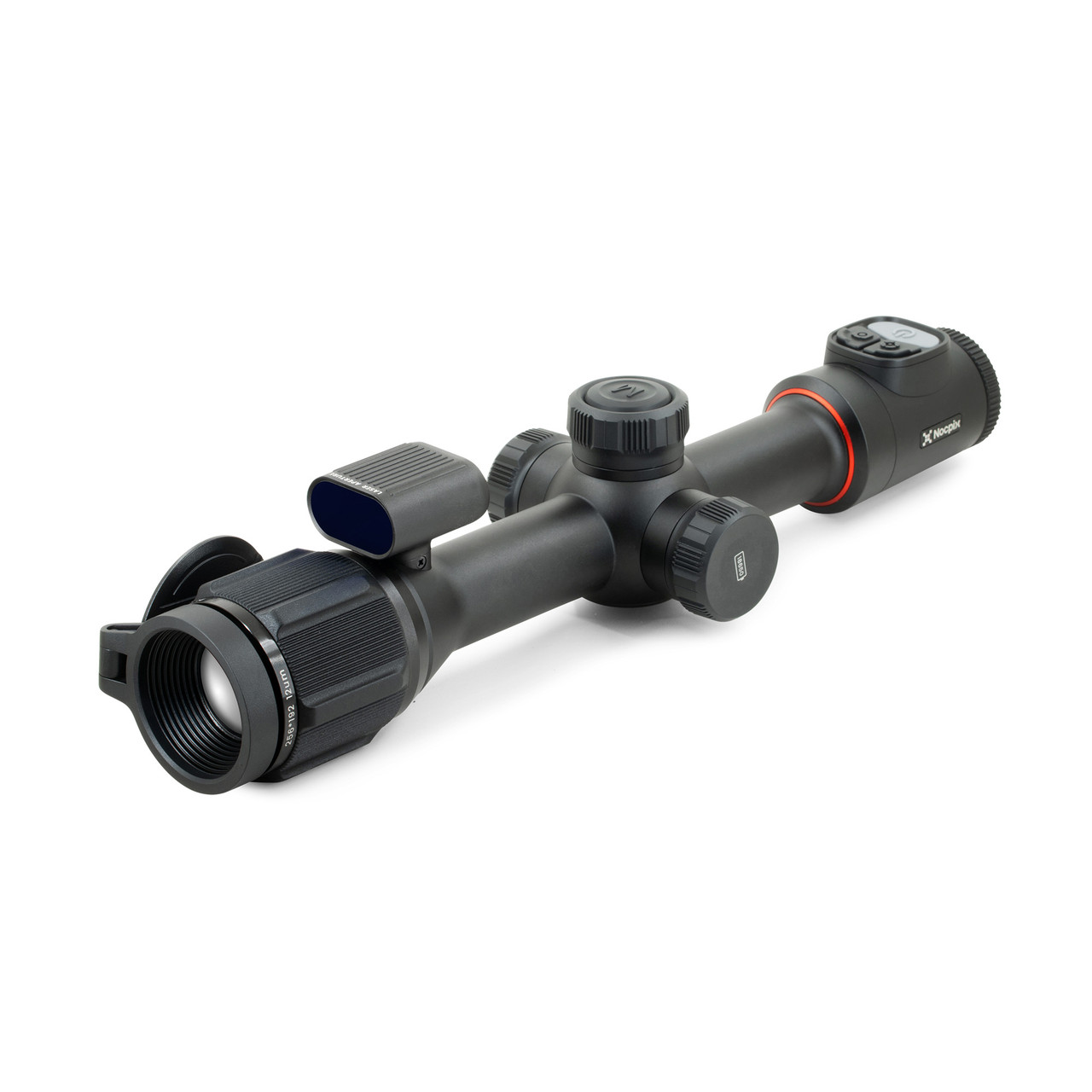

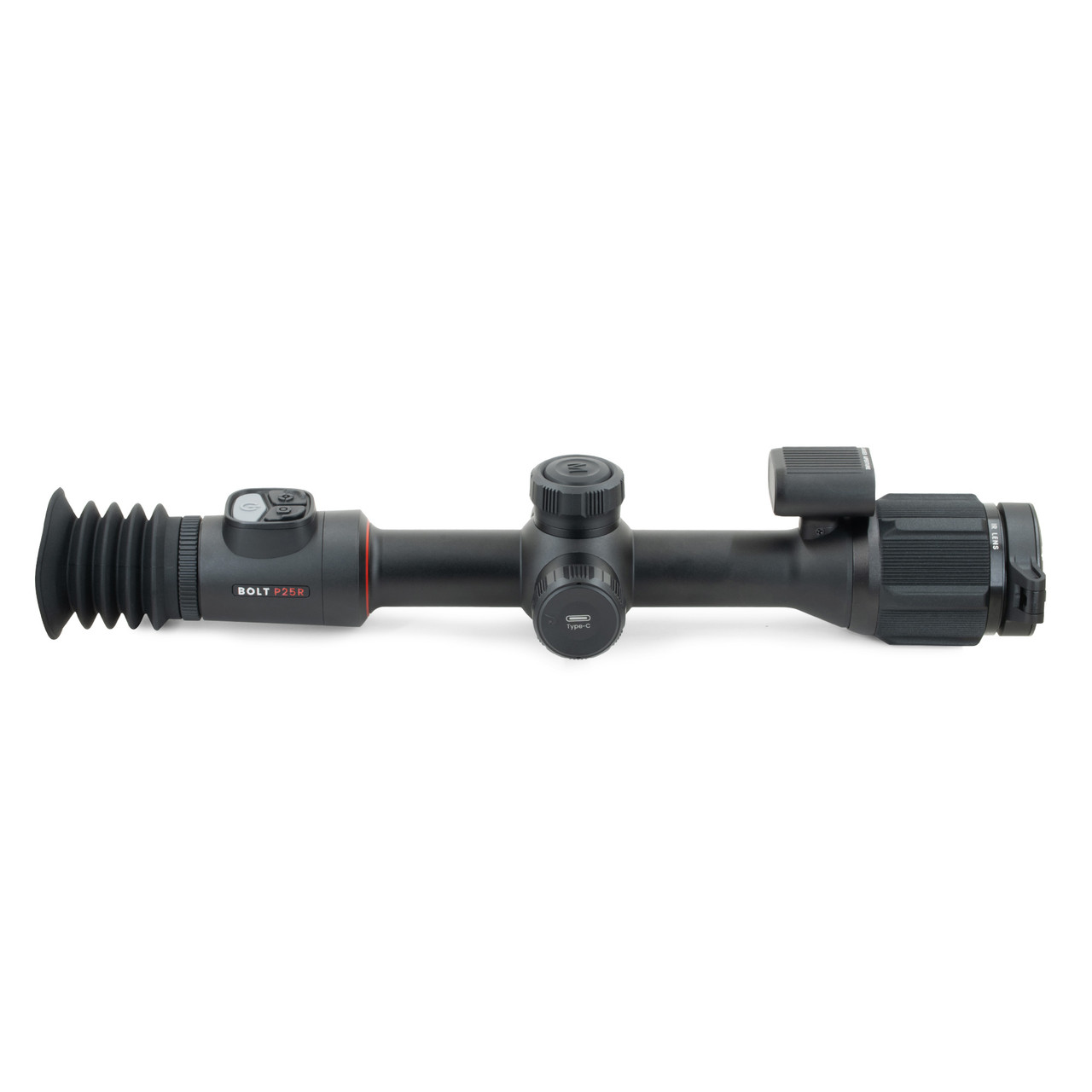

Name: NOCPIX BOLT P25R Thermal Weapon Sight LRF 256 25mm
Brand: Nocpix
SKU: BOLT-P25R
Availability: InStock

New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.

Optics

Display Type: AMOLED

Eye Relief: 50 mm

Diopter Range: -5 to +5

Focusing Mechanism: Manual Focus

Objective F#: 1.0

Display Resolution: 1024×768

Objective Diameter: 25 mm

Vertical Angular Field of View: 5.3°

Horizontal Angular Field of View: 7.5°

Horizontal Angular Field of View: 7.0°

Objective Lens Material: Germanium

Digital Magnification: 4X

Optical Magnification: 3.5X

Objective Focal Length: 25 mm
Features & Performance

Startup Time: <10 Seconds, Instant from Standby

Rangefinder: Integrated 1300 yd LRF

Color Palettes: White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

Picture-in-Picture: Yes

Storage Capacity: 32 GB

Run Time: 6+

Connector Output: Power/Data

Power Source: USB-C External, 18650 Battery, Built-In Battery Pack

User-Updatable Firmware: Yes

Mobile App: Yes

One-Shot Zero: Yes

Stand-by Mode: Yes

Country of Manufacture: China

Warranty: 5 Years

Wifi: Yes

Onboard Recording: Yes

Image Capture: Yes

Video Output: Yes

Reticle: 8 (7 Static, 1 DIY)

Connector Type: USB-C

External Power Source: USB-C
Environmental Specifications

Operating Temperature Range: -4°F~122°F

Recoil Rating: 1000 g/s² (300 Win./7mm Mag)

Ingress Protection: IP67
