Manticore Ruggedized Dual Tube White Phosphor Night Vision
$7,999.00 – $9,499.00
Manticore Ruggedized Dual Tube White Phosphor Night Vision
APRIL DUALS DAYS ARE ON!!
Click the OPTIONS menu to see specs on IN STOCK AND READY TO SHIP units!

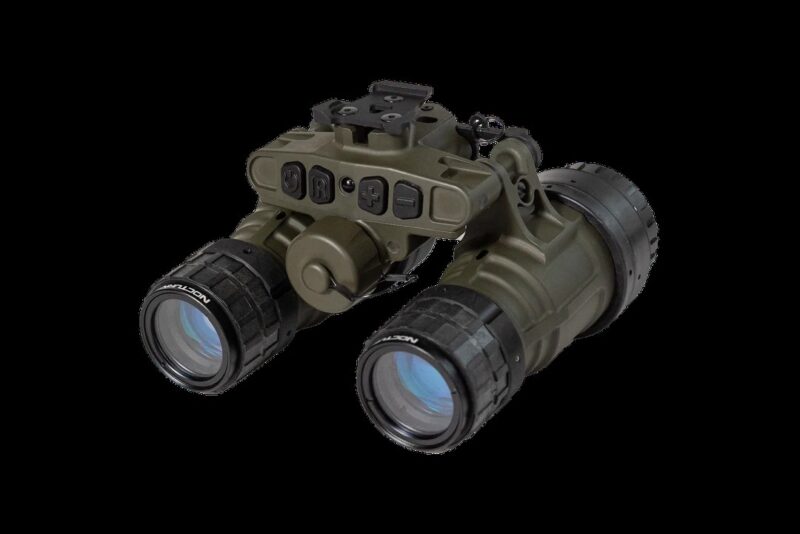

The Ultralight Articulating Night Vision Binocular – Full Control Ruggedized (UANVB-FCR) “Manticore-Ruggedized” is a articulating binocular housing made of high strength aerospace grade 7075-T6 aluminum with a full suite of onboard digital controls. Using advanced multi-axis CNC machining an ultra lightweight and robust design is achieved, including an optimal single piece pod geometry. This binocular includes features such as digital manual gain control, individual pod stow shutoff, IPD stops, user adjustable pod tension, IR-illuminator & indicator, and low battery indicator. The device is powered on-board by a single CR123A for a continuous runtime of ~25 hours.
This unit features Manual Gain control, allowing YOU to control the brightness level of the tubes via the button controls. Available with high specification Elbit Systems of America White Phosphor 3rd gen tubes and standard Carson-now called “Noctis” lenses, unless you opt for RPO lightweight lenses.
Specifications
Material(s)
CNC machined 7075-T6 & 6061-T6 aerospace grade aluminum, aerospace Grade 4 Titanium.
____________________
Finish
Mil-standard Type III class II hard anodize, H-Series Cerakote
____________________
Tube Type
3 contact pad style 18mm MX-11769, 18mm MX-11769 style with EGAC pigtail removed, and replaced with adapter or MX-10160 with loss of manual gain.
____________________
IR Illuminator
Yes
____________________
Individual Pod on/off
Yes, individually.
____________________
Housing Weight
6.17 oz. / 0.38 lbs / 175g
____________________
Device Weight Standard
19.79 oz. / 1.24 lbs / 561 g
(Mil-Spec PVS-14 lenses and Photonis Image Intensifiers)
____________________
Device Weight Lightweight
16.5 oz. / 1.03 lbs / 468 g
(RPO 3.0 PVS-14 lenses and Photonis Image Intensifiers)
____________________
On-Board Power
CR123A onboard with a runtime of ~25hours
____________________
Out-Board Power
Yes, LEMO port
____________________
Manual Gain Control
Yes, Digital tactile push buttons
____________________
Ingress rating
Exceeds IP-68, and MIL-STD-810H
____________________
Waterproof
Yes, 66Ft. +
| OPTIONS | 0722183, 0722186 |
|---|
