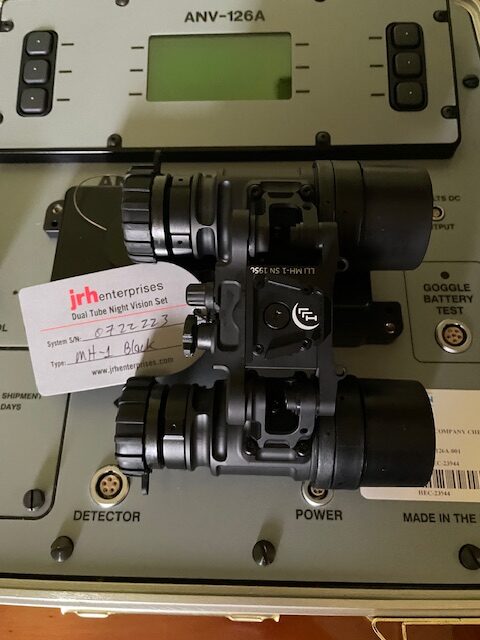

MH-1 Dual Tube Night Vision Set White Phosphor 3rd Gen
$7,799.00 – $8,295.00
MH-1 Dual Tube Night Vision Set White Phosphor 3rd Gen
Crafted from aerospace-grade magnesium and titanium alloys, the MH-1 is a perfect blend of ruggedness and lightweight design, tipping the scales at just 15.3 ounces in its lightest configuration. The MH-1 is truly modular, allowing users to swap power supplies in minutes, choosing between CR123A, AA, and more (optional). Its modularity extends to the ability to split the device into two monoculars using our new Modular Bridge System (MBS). What sets the MH-1 apart is its manual gain feature, which can be achieved via direct plug-in without any soldering, ensuring your tube’s warranty remains intact.
MH1 ships with 3rd Generation SLH mid grade WHITE PHOSPHOR autogated tubes. Use options menu to see the specs for in stock and ready to ship units. “FOM” is Figure of Merit and is a calculation of Resolution X Signal to noise ratio and is a quick way to ascertain how well a specific tube performs. Higher FOM level means more performance. Spot spec same for each FOM level.
| Equivalent Background Illumination | 2.5 max. | |
| Resolution: | 64 lp/mm min. | |
| Max Spots Allowed in Each Zone, Spot Size (in.) | ZONE 1___2___3 |
|
| ………..>.012 – .015 | 0___0___0 | |
| ………..>.009 – .012 | 0___0___0 | |
| ………..>.006 – .009 | 0___1___1 | |
| ………..>.003 – .006 | 0___2___2 |
FEATURE:
Rotational pod shutoff
Manual gain control
Dual power IR illumination
IPD stops
Modular pods (Ability to split into monos)
Onboard power (Modular)
External power (Modular
Dovetail mounting
Adjustable pod tension
FREE custom hard case
SPECIFICATIONS:
POWER SOURCE: MODULAR
FOCUS RANGE: 9.8” TO INFINITY
OPERATION TIME: APPROXIMATELY 25-90 HOURS
MAGNIFICATION: (1X) ONE POWER
FIELD OF VIEW: 40 DEGREES
INTERPUPILLARY ADJUSTMENT: 51 TO 78MM
DIOPTER ADJUSTMENT: -6 TO +2
EYE RELIEF: 25MM
WEIGHT: 434g
WATER RESISTANCE: SUBMERSIBLE TO 66 FT 2 HRS
INTENSIFIER TUBES: COMPATIBLE WITH MX-10160/11769 OPTICS: COMPATIBLE WITH PVS-14 EYEPIECE AND OBJECTIVE
Made in the USA based in part on components from overseas
| OPTIONS | 0722185, 0722187 |
|---|
